Part 4: Spray Chamber
|
|
For the spray chamber I wanted a way to disassemble it if needed. I decided to use 1/8" hardboard
and have the pieces tie together with metal pins. The lights are mounted outside the flow of
the spray.
|
|

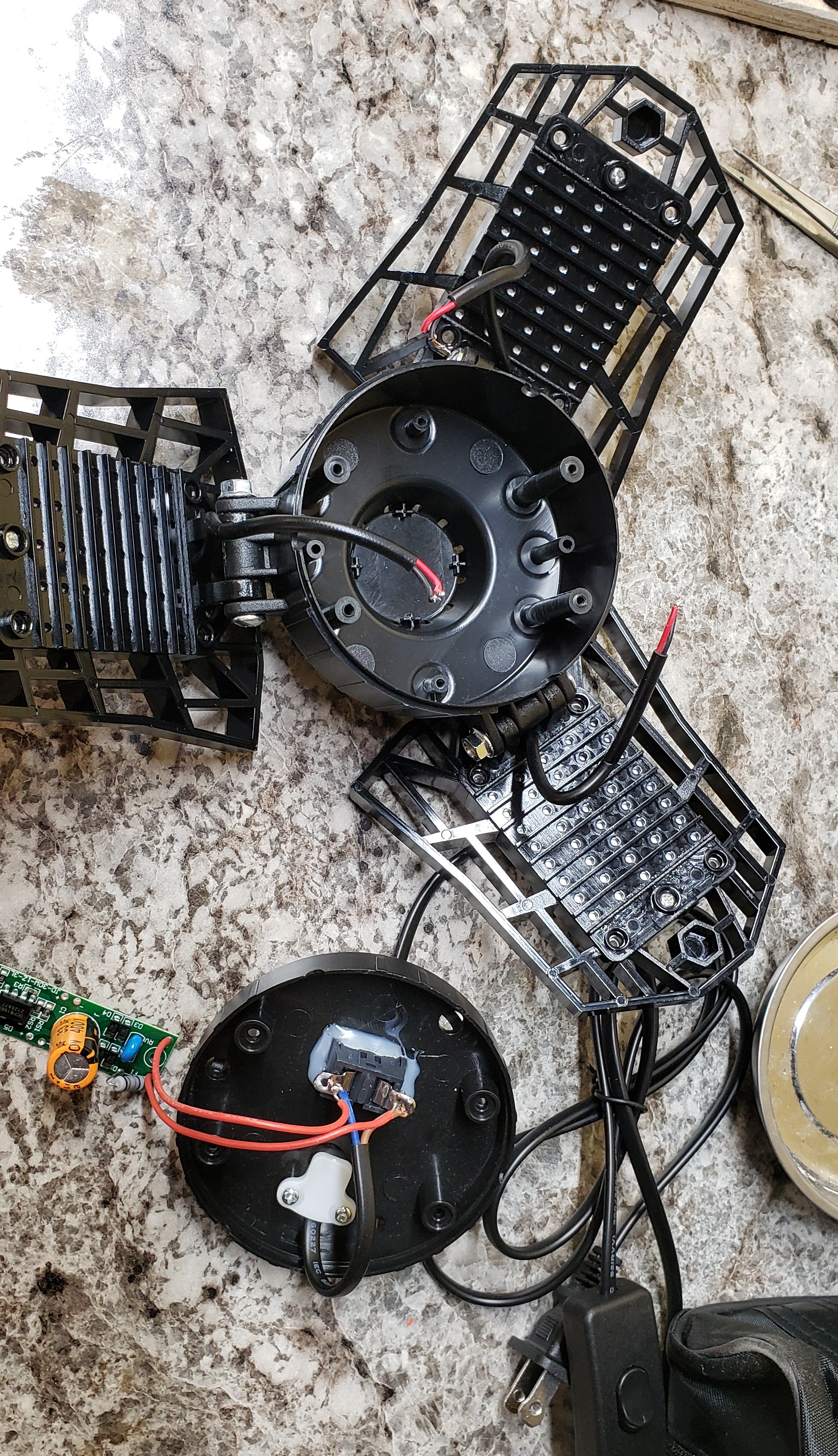

A three blade LED light is taken apart.
|
|

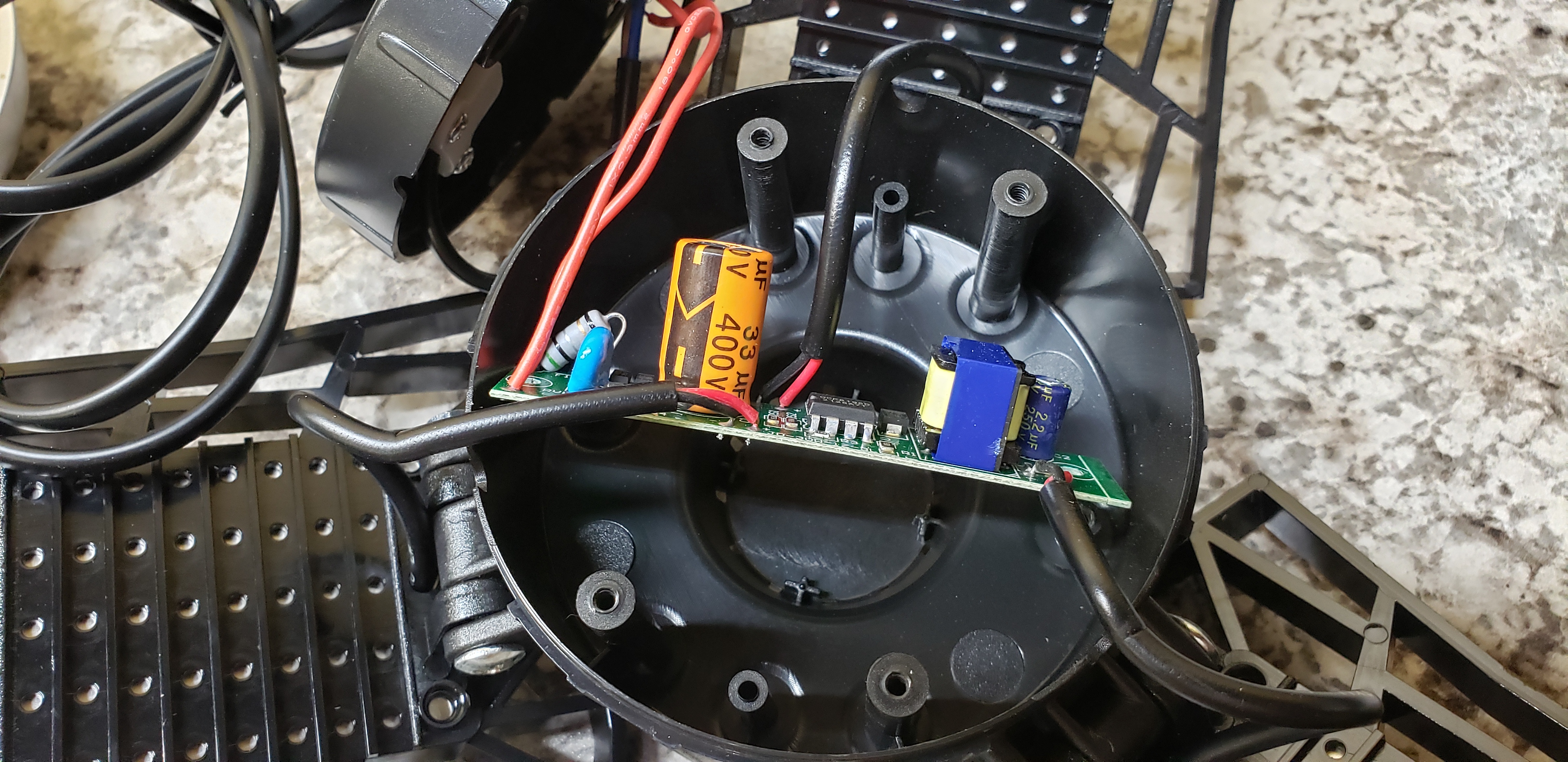

The heart of the light is the circuit board.
|
|

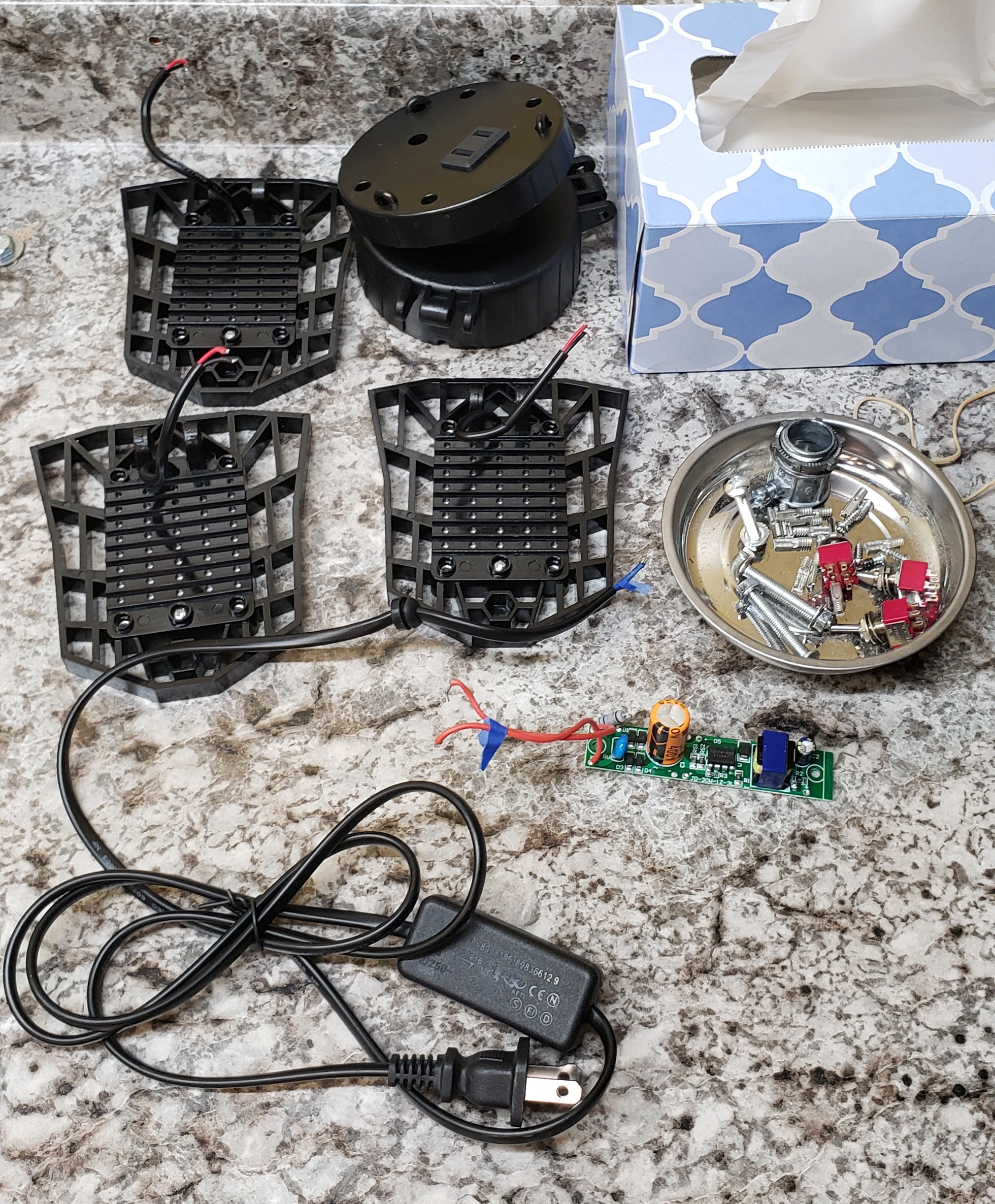

These are the parts of the light that will be used on the chamber. I intended to use
three lights but found I only needed two.
|
|

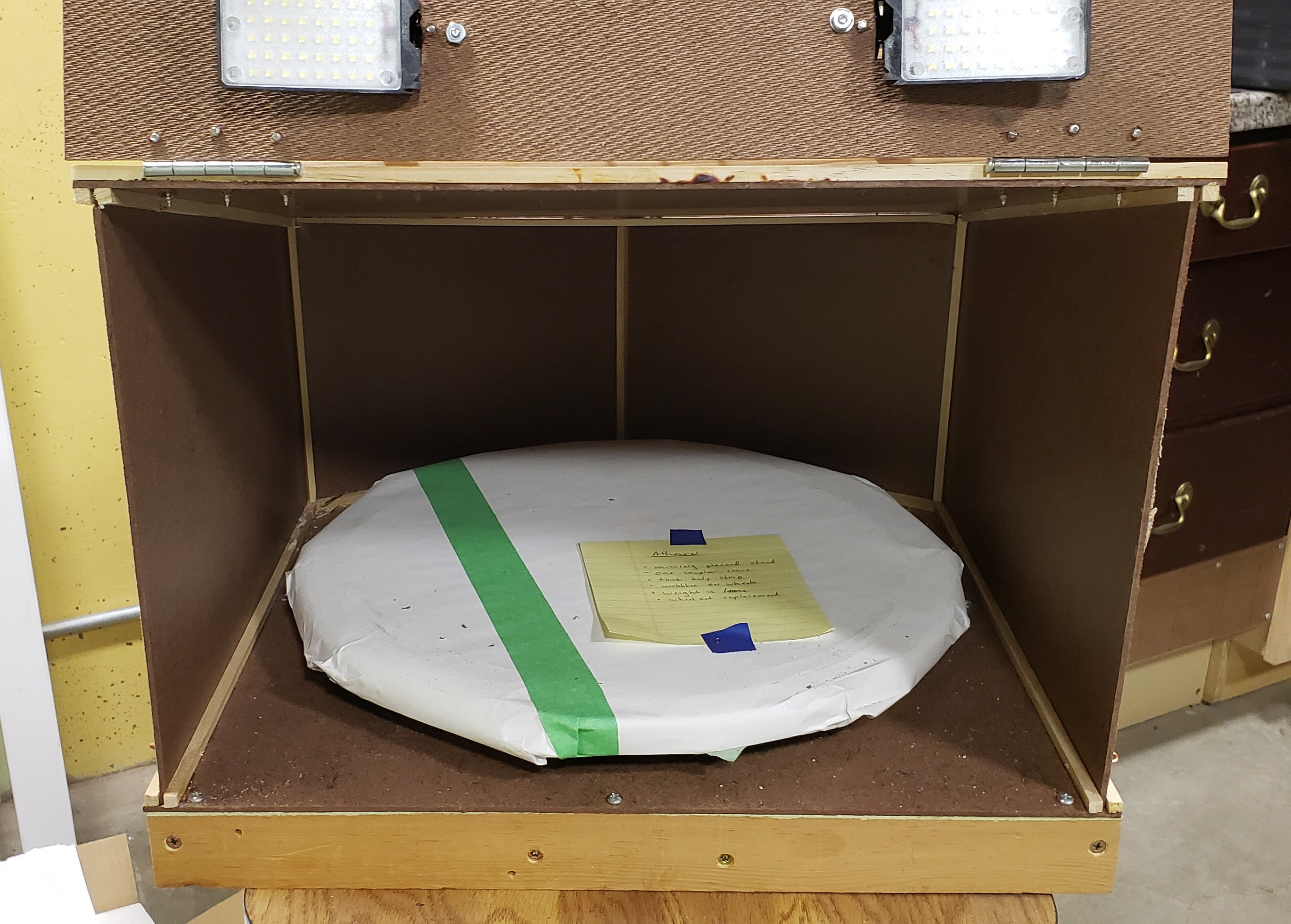

The lights are mounted on a hinged flap at the front of the chamber.
|
|

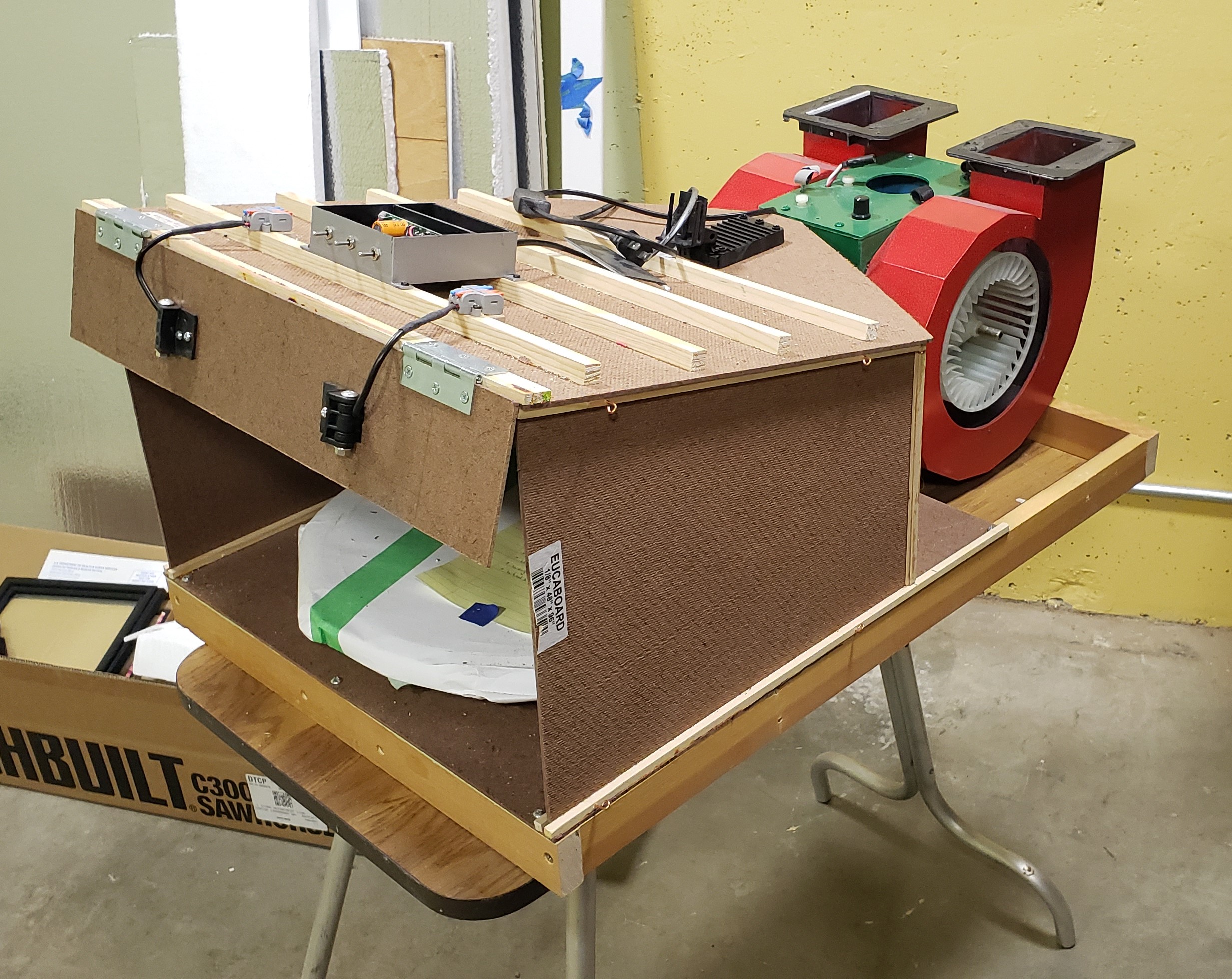

The chamber during construction.
|
|

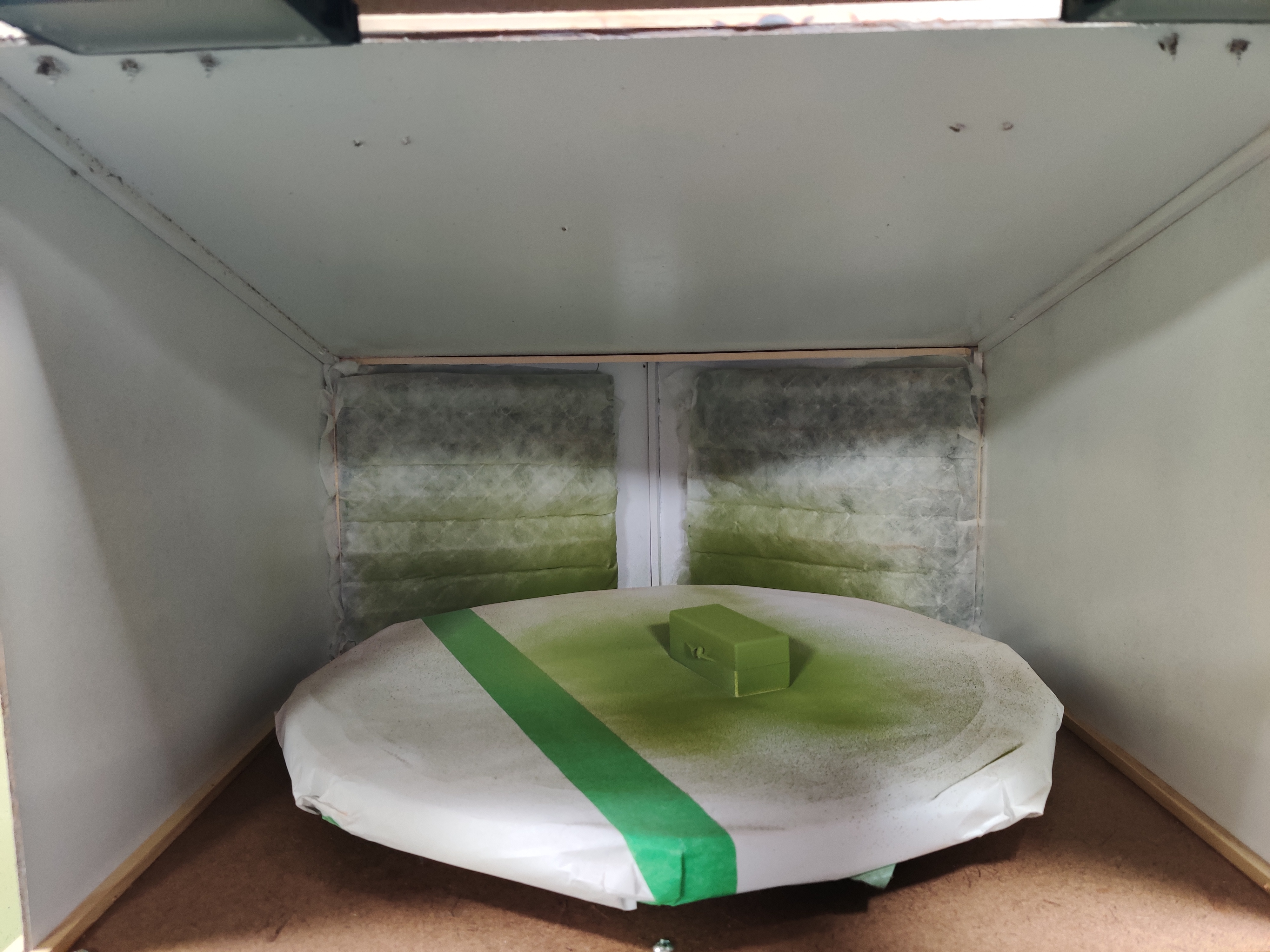

The completed chamber spray painted white inside. Filters are shown at the back.
|
|

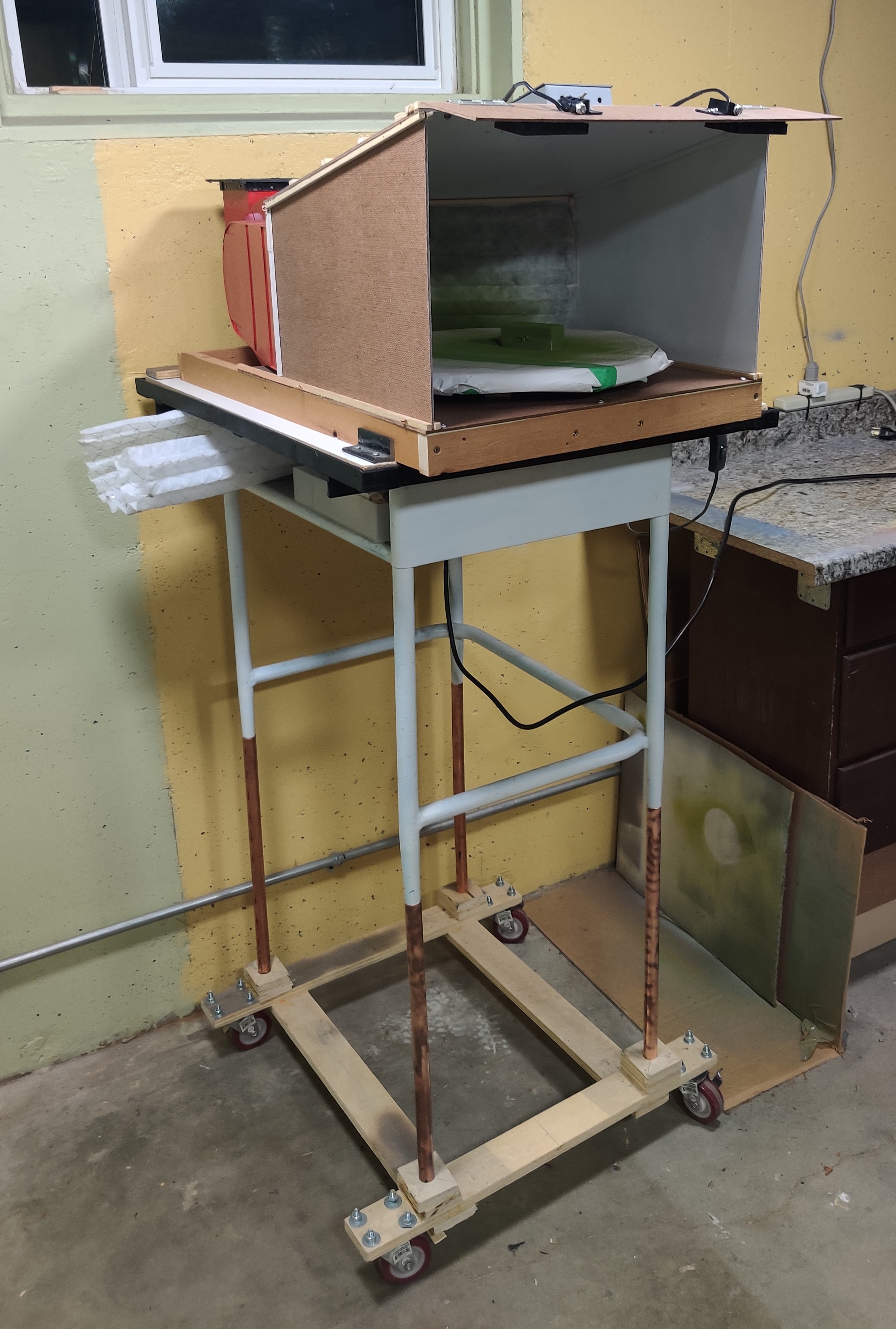

I built the base from a metal table, wood, brass piping, and castors.
|
|

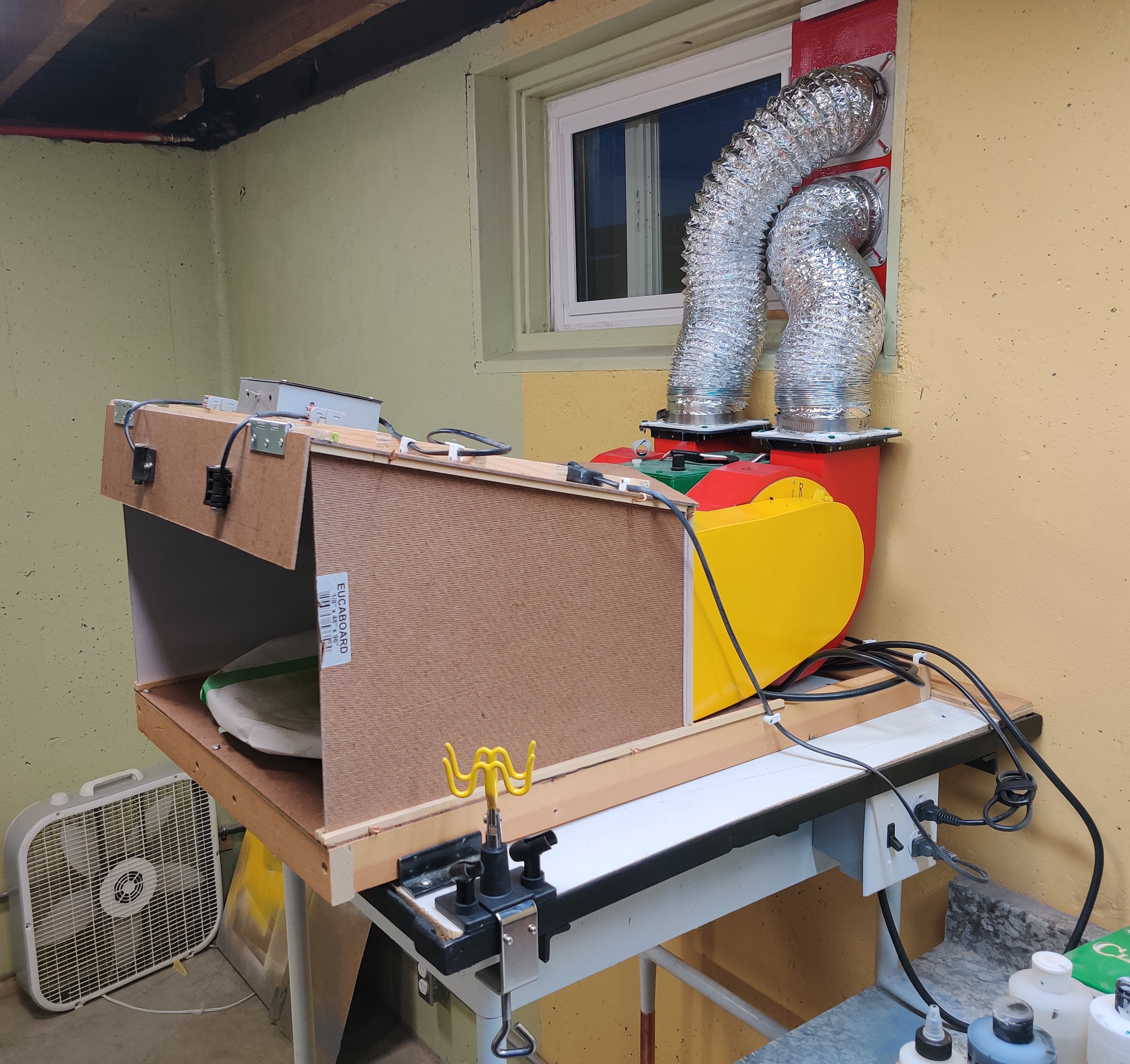

The completed booth. Exhaust ducts vent to the outside.
|
